Crystal Touch: TRUE Multi-Touch

Projected Capacitive Touch Panel

Multi Touch

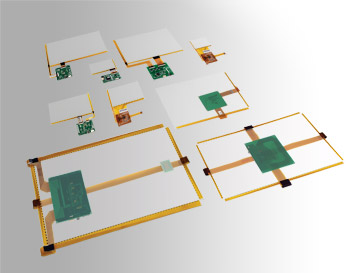

The Crystal Touch family of projected capacitive touch panels includes TRUE multi-touch panels in 3.5″, 4.3″, 5.7″, 7.0″, 10.1″, 10.4″, 12.1″, 15.6″ and 17.0″ sizes. Providing a variety of panel options, the Crystal Touch portfolio allows for additional products to benefit from the advanced technology of projected capacitive touch.

Crystal Touch: TRUE Multi-Touch represents the next generation of touch technology. Increasing the amount of touch points on the panel allows for greater functionality and additional interface possibilities. TRUE multi-touch panels provide additional touch points that can all be interpreted simultaneously and give increased functionality to a product. Crystal Touch: TRUE Multi-Touch panels can support up to 16 simultaneous touch points and have the sophistication to identify and disregard unintended touches.

Crystal Touch: TRUE Multi-Touch panels come standard with the touch sensor and controller and the top glass layer of Crystal Touch: TRUE Multi-Touch serves as the surface of the touch screen interface. If an additional layer of glass is required, Crystal Touch: TRUE Multi-Touch PLUS PCAP touch panels are available with an optically bonded, soda-lime cover glass, which is design-ready and can easily be incorporated into zero-bezel designs. Standard Crystal Touch panels provide controller assembly options, all sizes are available with the controller integrated on a PCB and six standard sizes are available as Chip on Flex (COF) designs with the controller located on the flex cable to increase design flexibility.

Crystal Touch: TRUE Multi-Touch panel offerings are aesthetically pleasing, giving products a clean look and feel. Utilizing Ocular’s projected capacitive touch panels also lengthens the lifespan of products by increasing durability and enhancing optical clarity. The top layer of glass keeps the panel clean and can withstand harsh chemicals and cleaning agents. In addition to the ability to withstand harsh chemicals, Crystal Touch: TRUE Multi-Touch panels can also endure harsh environments and extreme temperatures.

Ocular also offers additional product enhancements through Customization and Design services, such as optical bonding. This technology takes an already durable Ocular product and adds the technology of DuPont™ Vertak® to increase sunlight readability, impact resistance, durability and scratch resistance.

Features

TRUE Multi-Touch Functionality

  • Up to 16 simultaneous touch points

Automatic Gesture Recognition

  • Single & 2-finger gesture recognition

Ultra-Rugged Touch Panel

  • Stands up to abrasive cleaners
  • Scratch resistant

Projected Capacitive Coupling

  • Works with hands or stylus
  • High resolution
  • Fast sampling rate
  • Auto calibration

All-Glass Construction

  • Maximal optical clarity
  • No deformations over time
  • No deformations due to temperature

Controller Assembly Options

  • Chip on Flex (COF) Designs
  • PCB featuring controller

Ocular’s Crystal Touch: TRUE Multi-Touch line of projected capacitive touch panels give products a competitive advantage with its clean look and TRUE multi-touch interface. Featuring all-glass construction, the Crystal Touch: TRUE Multi-Touch provides maximum optical clarity, does not lose its shape or deform over time and extends the lifespan of a product due to its increased durability. Made from capacitive glass, the all-glass construction provides a smooth surface that can withstand a wide range of temperatures: operating temperatures range from −20° to 80°C and storage temperatures range from −30° to 80°C.

In addition to harsh environments, Crystal Touch: TRUE Multi-Touch panels are ruggedized and can handle abrasive cleaners, preventing any damage that may be caused if interaction with harsh chemicals occurs. This ultra-rugged panel is scratch resistant and can be an upgrade to products currently using a resistive touch interface or a single touch projected capacitive panel.

Projected Capacitive Coupling is provided by Crystal Touch: TRUE Multi-Touch and panels have a high resolution of 4096 x 4096, a fast sampling rate of 100 Hz, (10 ms per scan), auto calibration and is not restricted to just touch; panels will also work with a stylus.


Specifications

Ocular’s Crystal Touch: TRUE Multi-Touch Projected Capacitive Touch Panels

Product Image Diagonal
Size		 Dimensions
(mm)		 Simultaneous
Touches		 Chip on
Flex (COF)
or PCB		 Voltage
(V)		 Interface Model Number Drawing

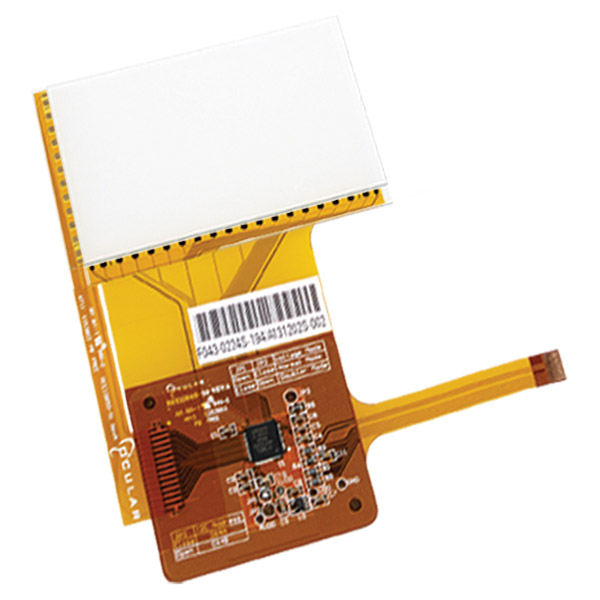

3.5″ Outline: 85 × 68
Active Area: 70 × 53
Total Thickness: 1.6		 10 COF 3.3 I²C F035‑0112S‑194 Datasheet

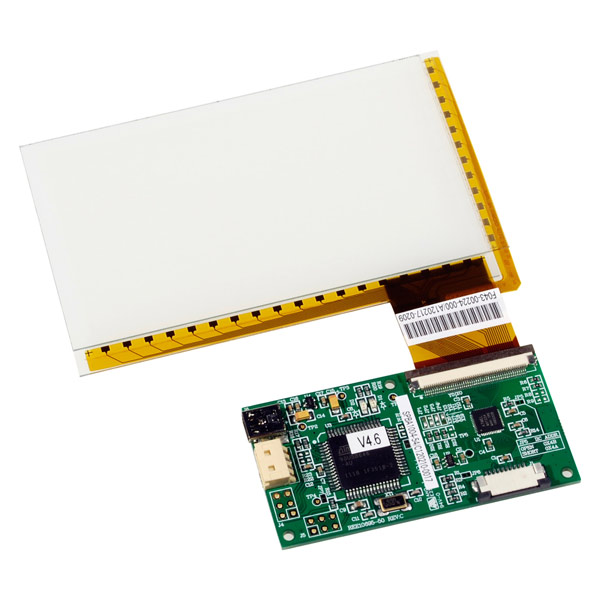

4.3″ Outline: 109 × 67
Active Area: 95 × 54
Total Thickness: 1.6		 10 PCB 5.0 USB F043‑00224‑000 Datasheet
3.3 I²C F043‑00224‑100 Datasheet
4.3″ Outline: 109 × 67
Active Area: 95 × 54

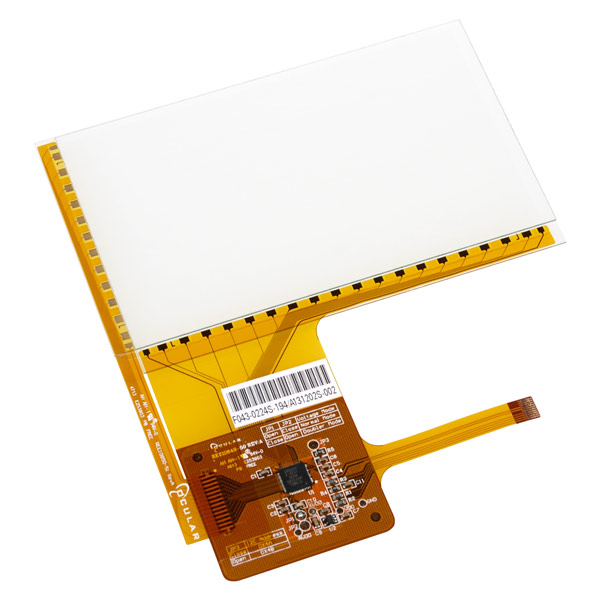

Total Thickness: 1.6		 10 COF 3.3 I²C F043‑0224S‑194 Datasheet

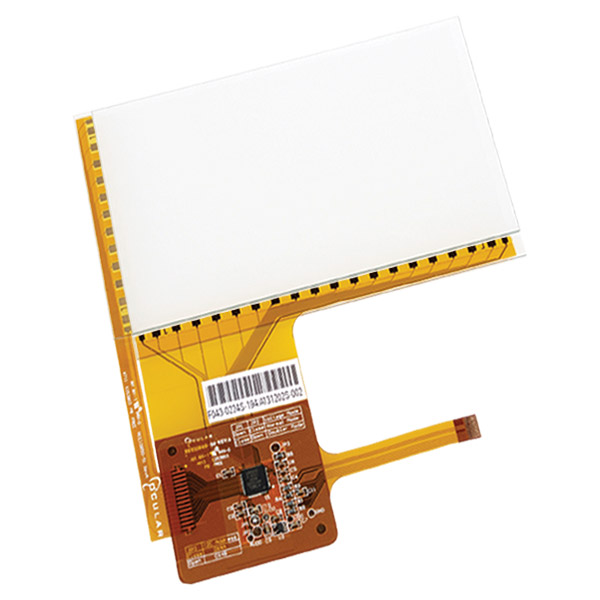

5.7″ Outline: 131 × 103
Active Area: 115 × 86
Total Thickness: 1.6		 10 COF 3.3 I²C F057‑0224S‑194 Datasheet

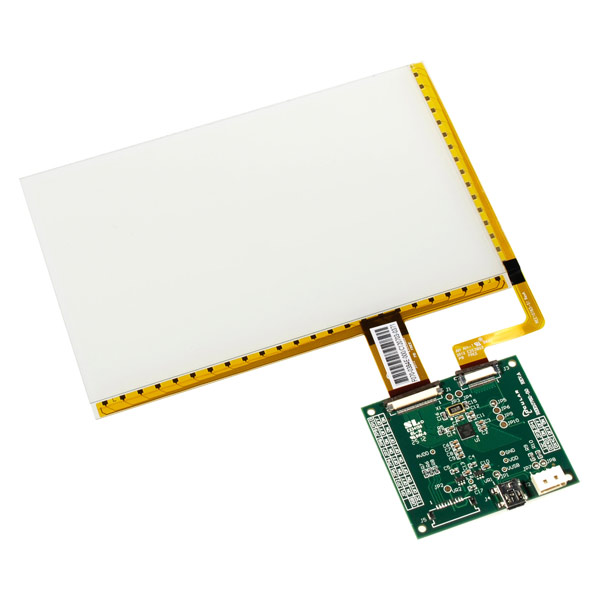

7.0″ Outline: 165 × 104
Active Area: 154 × 91
Total Thickness: 1.6		 16 PCB 5.0 USB F070‑0384E‑000 Datasheet
3.3 I²C F070‑0384E‑100 Datasheet

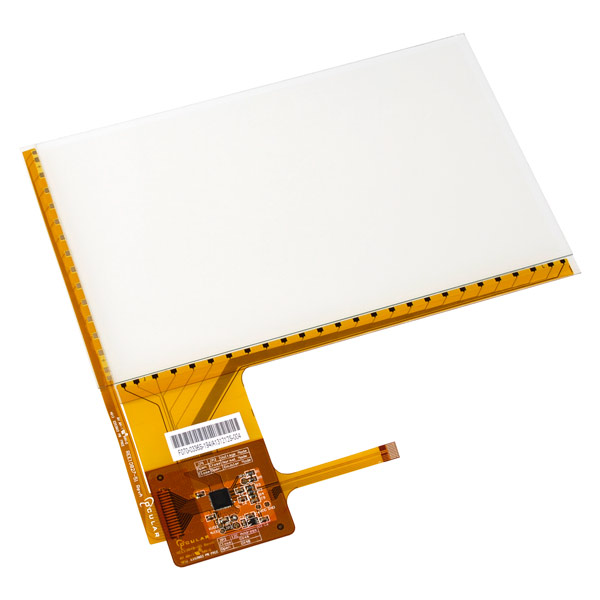

7.0″ Outline: 169 × 108
Active Area: 154 × 91
Total Thickness: 1.6		 16 COF 3.3 I²C F070‑0336S‑194 Datasheet

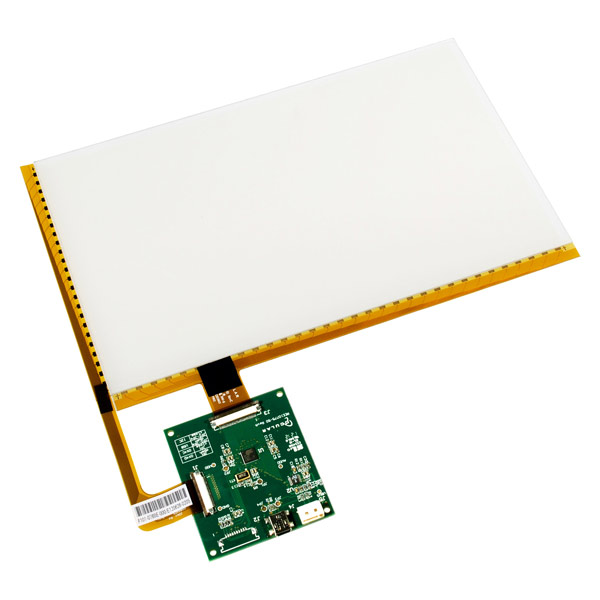

10.1″ Outline: 241 × 150
Active Area: 223 × 132
Total Thickness: 1.6		 16 PCB 5.0 USB F101‑0768E‑000 Datasheet
3.3 I²C F101‑0768E‑100 Datasheet

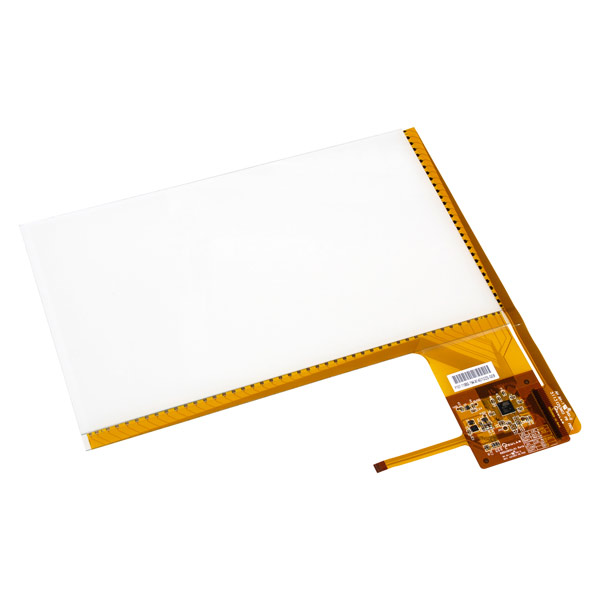

10.1″ Outline: 241 × 150
Active Area: 223 × 132
Total Thickness: 1.6		 16 COF 3.3 I²C F101‑1188S‑194 Datasheet

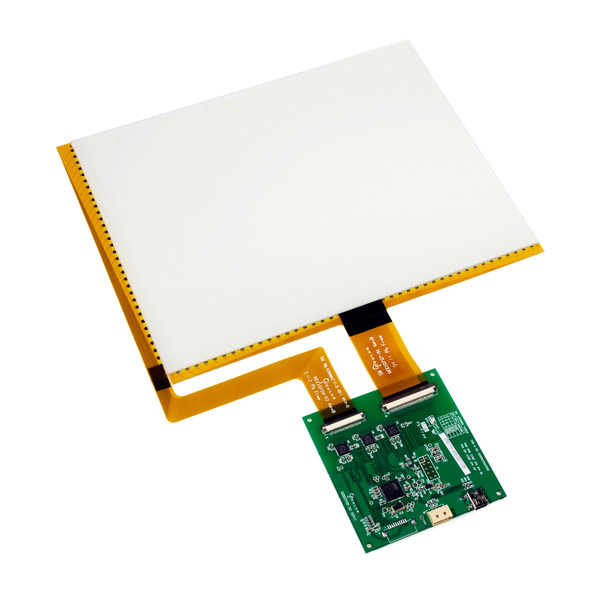

10.4″ Outline: 229 × 173
Active Area: 211 × 158
Total Thickness: 1.6		 16 PCB 5.0 USB F104‑01386‑000 Datasheet
3.3 I²C F104‑01386‑100 Datasheet

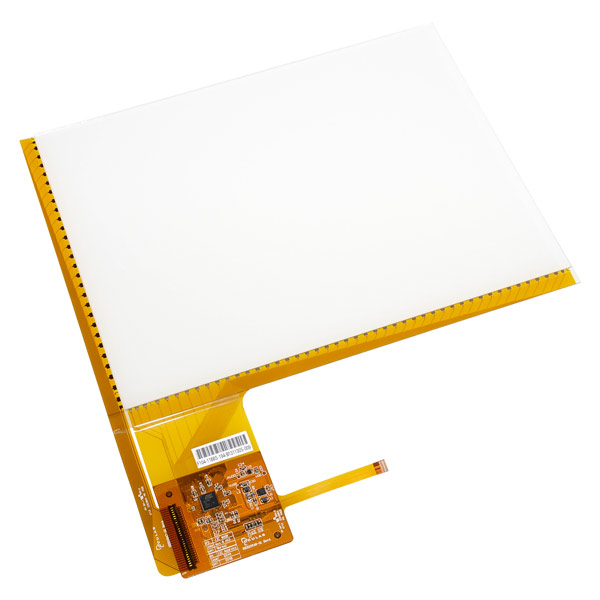

10.4″ Outline: 231 × 177
Active Area: 211 × 158
Total Thickness: 1.6		 16 COF 3.3 I²C F104‑1188S‑194 Datasheet

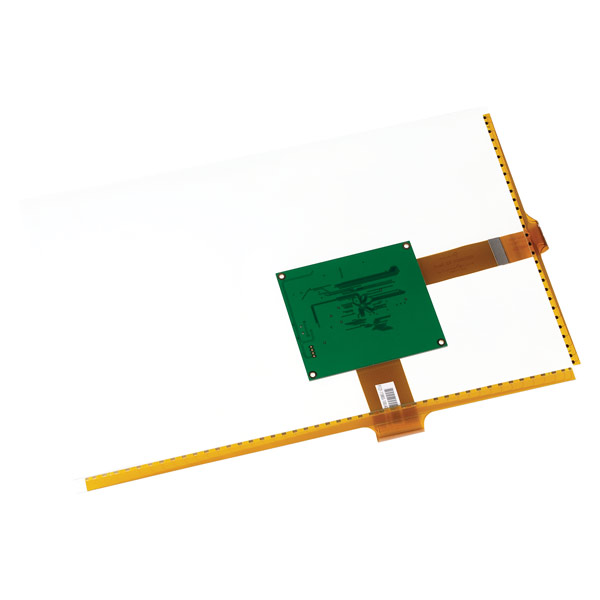

12.1″ Outline: 278 × 184
Active Area: 261 × 163
Total Thickness: 1.6		 16 PCB 5.0 USB F121‑1188S‑000 Datasheet
3.3 I²C F121‑1188S‑100 Datasheet
15.6″ Outline: 366 × 218
Active Area: 344 × 194
Total Thickness: 1.6		 16 PCB 5.0 USB F156‑01386‑000 Datasheet
3.3 I²C F156‑01386‑100 Datasheet

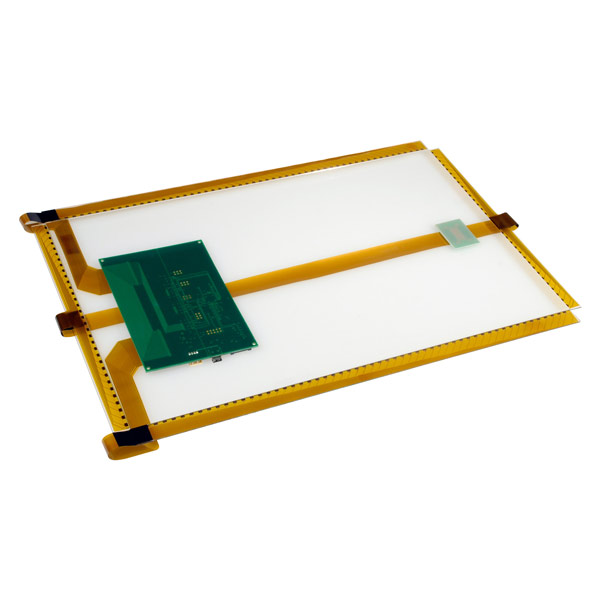

17.0″ Outline: 400 × 258
Active Area: 370 × 222
Total Thickness: 2.6		 16 PCB 5.0 USB F170‑1716E‑000 Datasheet
3.3 I²C F170‑1716E‑100 Datasheet

Crystal Touch: TRUE Multi-Touch Specifications

Resolution 4096 x 4096
Transmissivity 90%
Operating Temp −20°C to 80°C

Note: System level performance is determined by the overall system design and construction.

Customizable Options

Touch Sensor Customizable Options

  • Active area
    • Changes can be made to fit the overall design requirements.
  • Chip on Flex (COF)
    • Available on select sizes only.
  • Controller Board Connectors, Pin-Outs & Dimensions
    • Customized to fit the end application’s enclosure.
  • FPC Routing
    • Location of FPCs can be relocated to fit the end application’s enclosure.
  • Hardening
    • Increasing the hardness and ruggedizing panels makes the interface more durable.
  • Impact resistance
    • Multiple methods are available to increase the impact resistance of a panel.
    • Add strengthening and/or use alternative materials.
    • Optical bonding.
    • Strengthened sensor layers.
    • Increased glass thickness.
  • Non-birefringent
    • Eliminate the “rainbow” effect. CLICK HERE to read more.
  • Overall dimensions
    • Custom sizes ranging from 2.5″ to 23″ diagonally.
  • Touch sensitivity
    • Tuned for use with gloves. CLICK HERE to read more.

Cover Lens Customizable Options

  • Custom silkscreen added to cover glass
    • Logos or other customized icons can be added to cover glass.
  • Cover glass coatings and treatments:
    • Anti-glare treatments
      • Treatments to reduce glare and increase display clarity are available on all Crystal Touch projected capacitive touch panels. Minimizing glare will create an enhanced image.
    • Anti-reflection treatments
      • Minimizing reflection on the display is an option that will increase efficiency of the display due to less light that is lost.
    • Anti-Smudge
      • Minimize finger prints and other debris on the interface.
    • Chemically Strengthened
      • Increase durability of the cover lens.
  • Cover lens material options
    • PMMA
    • Soda-lime
    • High Ion-Exchange/Aluminosilicate
  • Water rejection
    • Eliminate false touches caused by water droplets and spray. CLICK HERE to read more.
