TRUE Multi-Touch PLUS

Crystal Touch: TRUE Multi-Touch PLUS

Projected Capacitive Touch Panel with Optically Bonded Cover Glass

Multi Touch

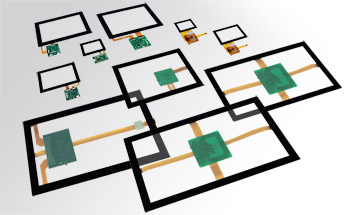

Standard Crystal Touch: TRUE Multi-Touch PLUS touch panels are available in 3.5″, 4.3″, 5.7″, 7.0″, 10.1″, 10.4″, 12.1″, 15.6″, 17.0″ and 18.5″ sizes. Providing all the benefits of Crystal Touch projected capacitive technology, the Crystal Touch: TRUE Multi-Touch PLUS also comes standard with a pre-integrated, optically bonded soda-lime cover glass which adds durability and is ready to be incorporated into touch driven devices.

Crystal Touch projected capacitive touch panels increase optical clarity while providing a durable touch interface that can withstand extreme environments and will not deform over time. The all-glass construction of Crystal Touch provides a smooth and scratch resistant surface that can be incorporated into zero-bezel designs and keeps out dirt and debris that could otherwise enter the device.


Crystal Touch: TRUE Multi-Touch PLUS comes standard with a soda-lime cover glass that is optically bonded directly to the touch sensor. The additional layer of glass makes Crystal Touch: TRUE Multi-Touch PLUS even more durable and is easily incorporated into zero-bezel designs. Crystal Touch: TRUE Multi-Touch PLUS reduces design time because they arrive tuned for optimum performance with cover glass use and are ready to be integrated into touch controlled devices.

Standard Crystal Touch products are available with a PCB board that features the TRUE multi-touch controller and six of the standard size PLUS panels are available as Chip on Flex (COF) assemblies: the controller is integrated on the FPC as opposed to an additional board.

TRUE multi-touch interfaces increase functionality and are ideal for collaborative work, allowing for multiple people to benefit from the same touch device simultaneously. With up to 16 simultaneous touch points, Crystal Touch: TRUE Multi-Touch PLUS projected capacitive touch panels have the sophistication to identify and disregard unintended touches.

If a pre-integrated cover glass is not required, the top layer of Crystal Touch: TRUE Multi-Touch panels can also serve as the touch screen surface of devices.

Ocular also offers additional product enhancements through Customization and Design services, such as optical bonding. This technology takes an already durable Ocular product and adds the technology of DuPont™ Vertak® to increase sunlight readability, impact resistance, durability and scratch resistance.

Features

Optically Bonded Cover Glass

  • Soda-lime glass
  • Increases durability and optical clarity

Application Ready

  • Zero-Bezel design
  • Easy installation

TRUE Multi-Touch Functionality

  • Up to 16 simultaneous touch points

Automatic Gesture Recognition

Ultra-Rugged Touch Panel

Projected Capacitive Coupling

  • Works with hands or stylus
  • Fast sampling rate
  • Auto calibration

All-Glass Construction

  • Maximal optical clarity
  • No deformations due to time or temperature

Controller Assembly Options

  • Chip on Flex (COF) Designs
  • PCB featuring controller

Ocular’s Crystal Touch: TRUE Multi-Touch PLUS is an application ready, projected capacitive touch panel and controller that come standard with an optically bonded cover glass. Standard panels feature a soda-lime cover glass bonded to a Crystal Touch: TRUE Multi-Touch panel that is specifically designed for cover glass use. The additional layer of glass provides increased durability and is easily integrated into devices featuring a touch screen interface. Standard Crystal Touch: TRUE Multi-Touch PLUS panels are also available with the controller integrated onto a PCB or as a Chip on Flex (COF) assembly, featuring the controller and corresponding chips on the flex cable, allowing for more design flexibility.

Crystal Touch: TRUE Multi-Touch PLUS utilizes TRUE multi-touch functionality by offering up to 16 simultaneous touch points and has the sophistication to identify and disregard unintended touches. Crystal Touch projected capacitive touch panels are made from capacitive glass that can withstand extreme environments and a wide range of temperatures: operating temperatures range from -20° to 80°C and storage temperatures range from -30° to 80°C.

In addition to extreme temperatures, Crystal Touch: TRUE Multi-Touch PLUS panels are ruggedized and can handle abrasive cleaners, preventing any damage that may be caused if interaction with harsh chemicals occurs.

Projected Capacitive Coupling is provided by Crystal Touch: TRUE Multi-Touch PLUS and panels have a resolution of 4096 x 4096, a fast sampling rate of 100 Hz, (10 ms per scan), auto calibration and is not restricted to just touch; panels will also work with a stylus.


Specifications

Ocular’s Crystal Touch: TRUE Multi-Touch PLUS Projected Capacitive Touch Panels with Optically Bonded Cover Glass

Product Image Diagonal
Size
Dimensions
(mm)
Simultaneous
Touches
Chip on
Flex (COF)
or PCB
Voltage
(V)
Interface Model Number Drawing
3.5″ Outline: 99 × 82
Active Area: 70 × 53
Cover Glass Thickness: 1.1
Total Thickness: 3.2

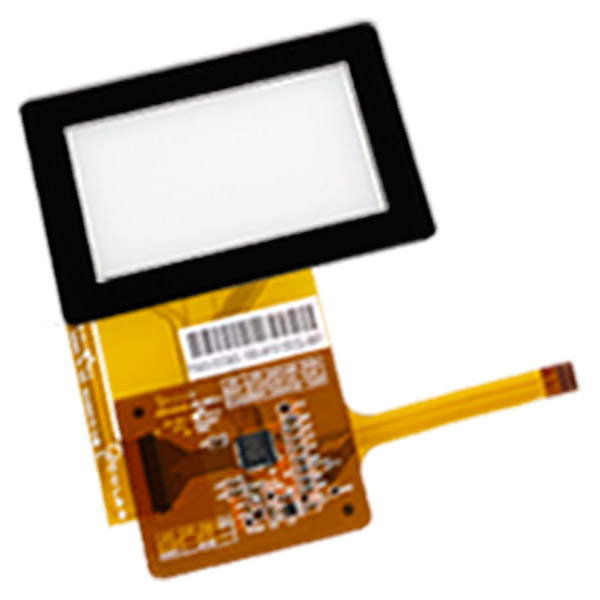

10 COF 3.3 I²C F035‑0112S‑195 Datasheet
4.3″ Outline: 124 × 83
Active Area: 95 × 54
Cover Glass Thickness: 1.1
Total Thickness: 3.2

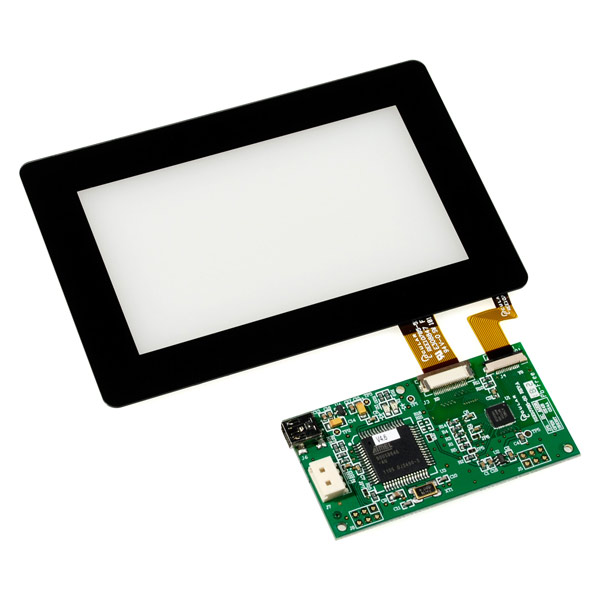

10 PCB 5.0 USB F043‑00224‑099 Datasheet
3.3 I²C F043‑00224‑199 Datasheet
4.3″ Outline: 124 × 83
Active Area: 95 × 54
Cover Glass Thickness: 1.1
Total Thickness: 3.2

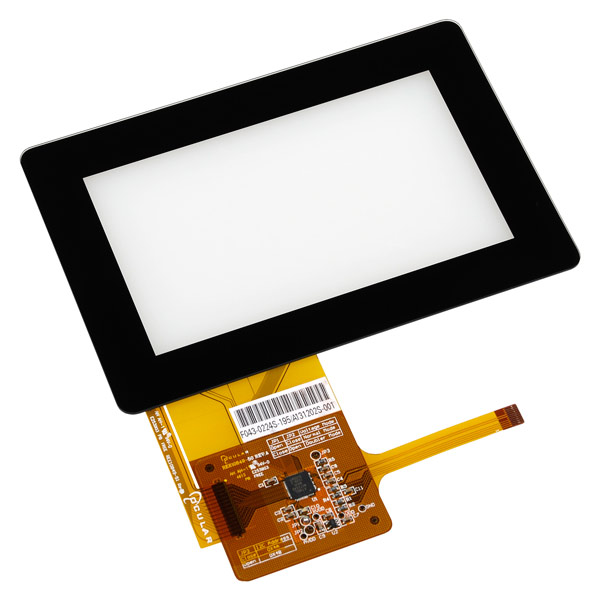

10 COF 3.3 I²C F043‑0224S‑195 Datasheet
5.7″ Outline: 150 × 121
Active Area: 115 × 86
Cover Glass Thickness: 1.1
Total Thickness: 3.2

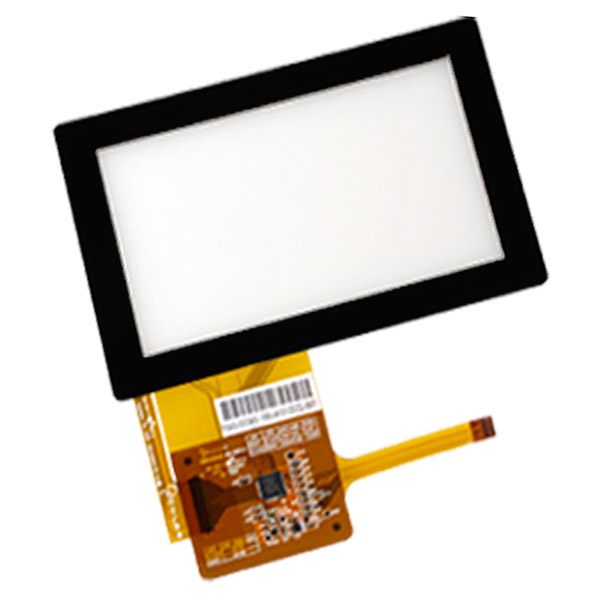

10 COF 3.3 I²C F057‑0224S‑195 Datasheet

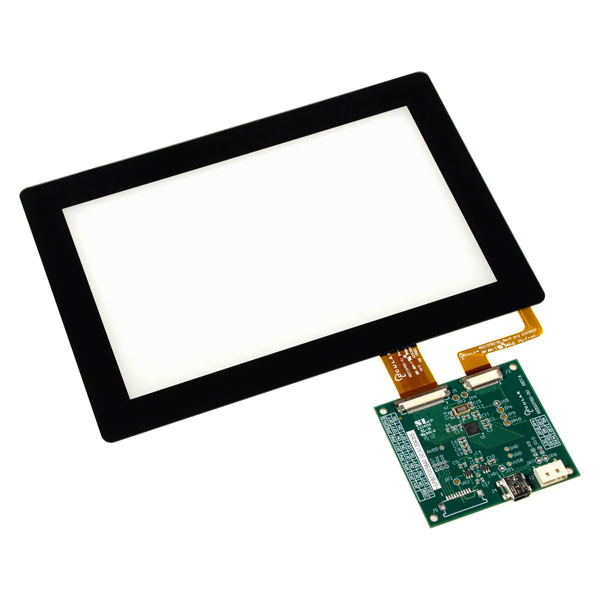

7.0″ Outline: 183 × 122
Active Area: 154 × 91
Cover Glass Thickness: 1.1
Total Thickness: 3.2
16 PCB 5.0 USB F070‑0384E‑099 Datasheet
3.3 I²C F070‑0384E‑199 Datasheet
7.0″ Outline: 183 × 122
Active Area: 154 × 91
Cover Glass Thickness: 1.1
Total Thickness: 3.2

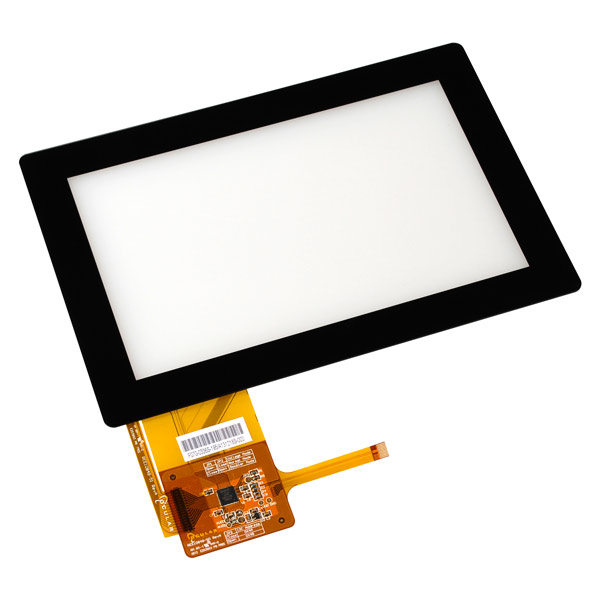

16 COF 3.3 I²C F070‑0336S‑195 Datasheet
10.1″ Outline: 268 × 177
Active Area: 223 × 132
Cover Glass Thickness: 1.1
Total Thickness: 3.2

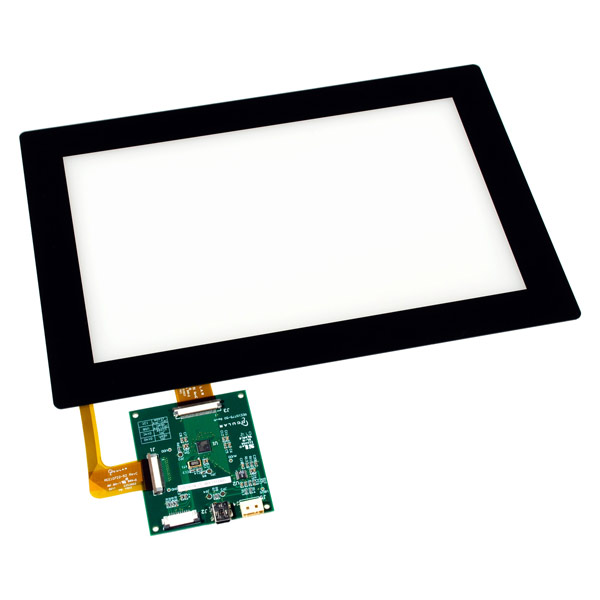

16 PCB 5.0 USB F101‑0768E‑099 Datasheet
3.3 I²C F101‑0768E‑199 Datasheet

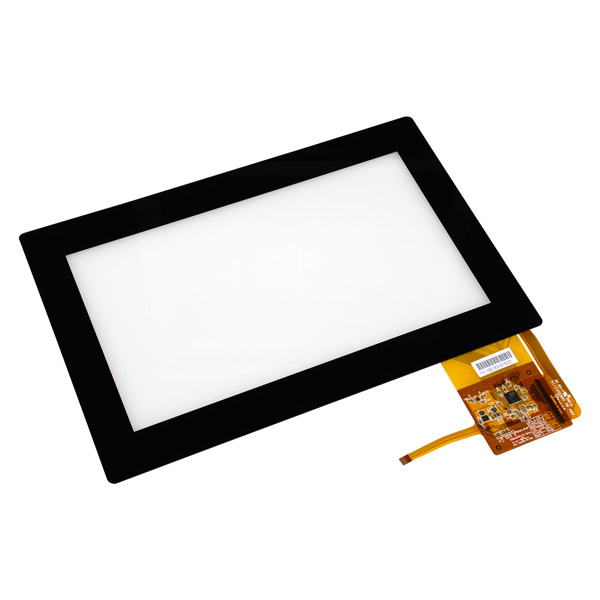

10.1″ Outline: 268 × 177
Active Area: 223 × 132
Cover Glass Thickness: 1.1
Total Thickness: 3.2
16 COF 3.3 I²C F101‑1188S‑195 Datasheet

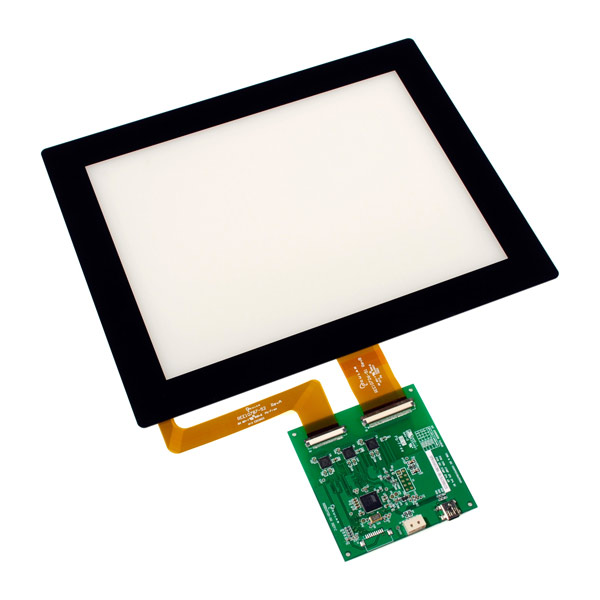

10.4″ Outline: 258 × 205
Active Area: 211 × 158
Cover Glass Thickness: 1.1
Total Thickness: 3.2
16 PCB 5.0 USB F104‑01386‑099 Datasheet
3.3 I²C F104‑01386‑199 Datasheet

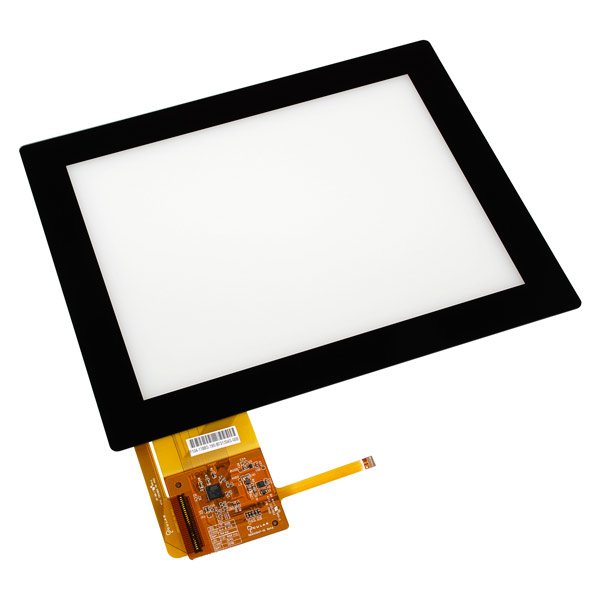

10.4″ Outline: 258 × 205
Active Area: 211 × 158
Cover Glass Thickness: 1.1
Total Thickness: 3.2
16 COF 3.3 I²C F104‑1188S‑195 Datasheet
12.1″ Outline: 305 × 207
Active Area: 261 × 163
Cover Glass Thickness: 1.1
Total Thickness: 3.2

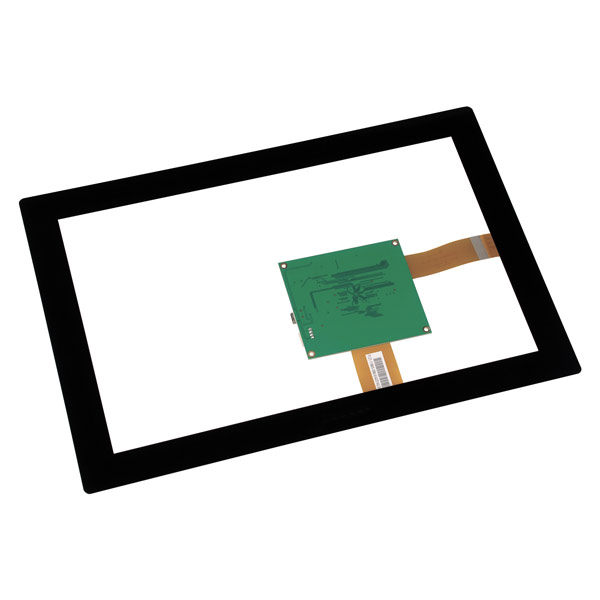

16 PCB 5.0 USB F121‑1188S‑099 Datasheet
3.3 I²C F121‑1188S‑199 Datasheet

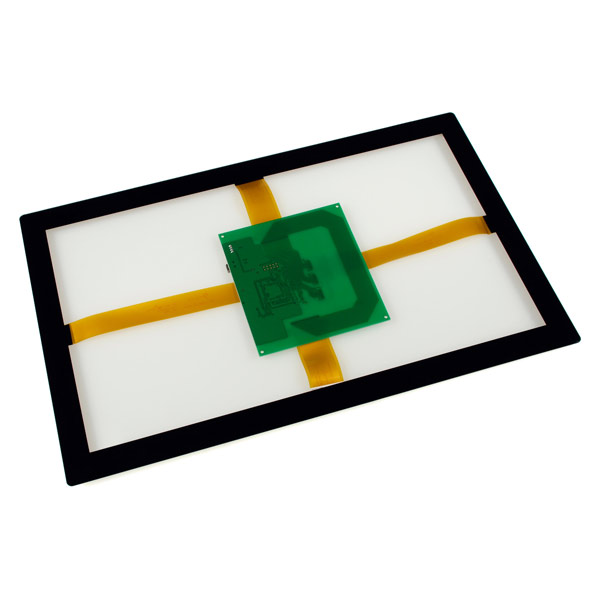

15.6″ Outline: 384 × 236
Active Area: 344 × 194
Cover Glass Thickness: 1.1
Total Thickness: 3.2
16 PCB 5.0 USB F156‑01386‑099 Datasheet
3.3 I²C F156‑01386‑199 Datasheet

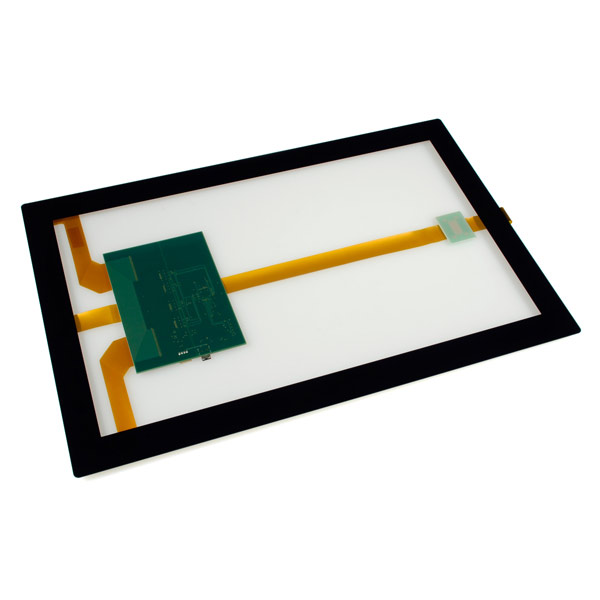

17.0″ Outline: 420 × 278
Active Area: 370 × 222
Cover Glass Thickness: 1.1
Total Thickness: 3.6
16 PCB 5.0 USB F170‑1716E‑099 Datasheet
3.3 I²C F170‑1716E‑199 Datasheet

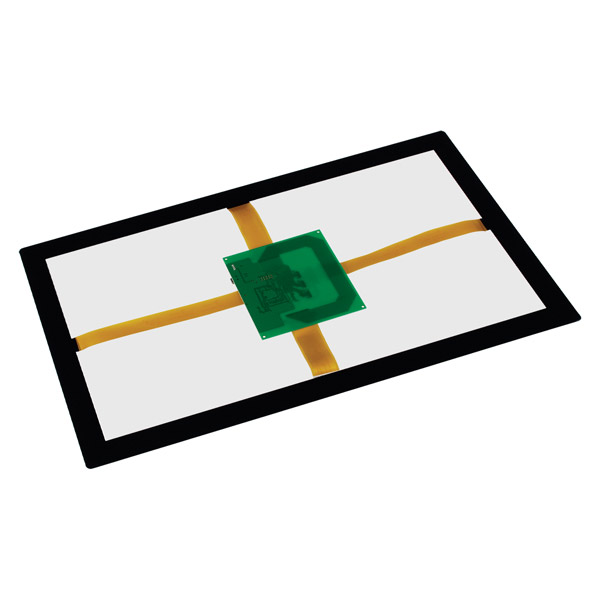

18.5″ Outline: 455 × 275
Active Area: 410 × 230
Cover Glass Thickness: 2.0
Total Thickness: 3.85
16 PCB 5.0 USB F185‑1664S‑099 Datasheet
3.3 I²C F185‑1664S‑199 Datasheet

Crystal Touch: TRUE Multi-Touch PLUS Specifications

Resolution 4096 x 4096
Transmissivity 90%
Operating Temp −20°C to 80°C

Note: System level performance is determined by the overall system design and construction.

Customizable Options

Touch Sensor Customizable Options

  • Active area
    • Changes can be made to fit the overall design requirements.
  • Chip on Flex (COF)
    • Available on select sizes only.
  • Controller Board Connectors, Pin-Outs & Dimensions
    • Customized to fit the end application’s enclosure.
  • FPC Routing
    • Location of FPCs can be relocated to fit the end application’s enclosure.
  • Hardening
    • Increasing the hardness and ruggedizing panels makes the interface more durable.
  • Impact resistance
    • Multiple methods are available to increase the impact resistance of a panel.
    • Add strengthening and/or use alternative materials.
    • Optical bonding.
    • Strengthened sensor layers.
    • Increased glass thickness.
  • Non-birefringent
    • Eliminate the “rainbow” effect. CLICK HERE to read more.
  • Overall dimensions
    • Custom sizes ranging from 2.5″ to 23″ diagonally.
  • Touch sensitivity
    • Tuned for use with gloves. CLICK HERE to read more.

Cover Lens Customizable Options

  • Custom silkscreen added to cover glass
    • Logos or other customized icons can be added to cover glass.
  • Cover glass coatings and treatments:
    • Anti-glare treatments
      • Treatments to reduce glare and increase display clarity are available on all Crystal Touch projected capacitive touch panels. Minimizing glare will create an enhanced image.
    • Anti-reflection treatments
      • Minimizing reflection on the display is an option that will increase efficiency of the display due to less light that is lost.
    • Anti-Smudge
      • Minimize finger prints and other debris on the touch screen.
    • Chemically Strengthened
      • Increase durability of the cover lens.
  • Cover lens material options
    • Soda-lime
    • High Ion-Exchange/Aluminosilicate
  • Water rejection
    • Eliminate false touches caused by water droplets and spray. CLICK HERE to read more.
